Qingdao Hanxiang Foundry Machinery Co., Ltd. is located in the beautiful Jiaozhou City, Qingdao. It is an enterprise with considerable strength that has been deeply involved in the foundry field for many years. The company boasts a modern production workshop equipped with advanced foundry equipment and professional production processes, which provides strong support for the production of high - quality castings...
Sand Casting
Sand Preparation → Pattern Making → Molding & Core Making → Box Closing → Melting → Pouring → Cooling → Shakeout (Shake out Sand & Remove Castings) → Shot Blasting Cleaning → Inspection → Finished CastingsProcessPreparation
Make preparation for the production process plan and draw the casting process drawingProduction Preparation
Prepare melting materials, molding & core-making materials, as well as patterns, core boxes, flasks and other toolingMolding and Core Making
Molding and core making includes sand mixing, molding, core making and mold matchingMelting and Pouring
Alloy materials are melted into molten metal.On-line composition analysis is carried out, then the liquid metal is poured into the sand mold.Cleaning and Inspection
Shakeout, heat treatment and shot blasting cleaning, followed by inspection of finished castings for qualificationGravity Casting
Mold Preparation → Spraying Coating on Mold + Preheating (200~350℃) → Alloy Melting → Manual/Ladle Gravity Pouring → Solidification & Cooling → Mold Opening and Casting Ejection → Gating and Riser Removal → Shot Blasting / Machining → Finished ProductsGravity Casting Process Flow
Put aluminum ingots and other raw materials into the melting furnace for heating and melting until the required temperature and chemical composition are achieved.During melting, refining treatments such as degassing and slag removal may be carried out to improve the quality of the molten aluminumPouring & Mold Filling

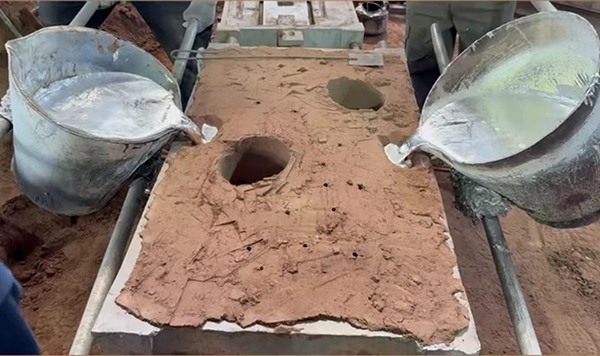

Manually pour the refined molten aluminum into the sprue of the metal mold using a ladle. The molten aluminum fills the mold cavity by its own weight.The pouring speed and volume must be properly controlled to avoid defects such as gas porosity and slag inclusionsVentilation
During the filling of molten aluminum, the gas inside the mold cavity needs to be discharged in a timely manner to ensure the quality of castings.Vent grooves, vent holes and other structures are usually arranged on the mold for gas exhausting.Cooling
The molten aluminum gradually cools and solidifies inside the mold.The cooling rate has a significant influence on the microstructure and mechanical properties of the casting, so it must be controlled according to the technical requirements of the castingMold Opening
When the casting has cooled to a certain extent and acquired sufficient strength, open the mold and take out the castingFettling
Clean the removed castings and remove surface burrs, flash, gate residues and other excess materialHeat Treatment
Appropriate heat treatment, such as annealing, quenching and aging, shall be carried out on the casting according to its service requirements to improve its mechanical propertiesMachining
Perform mechanical machining on the casting to meet the dimensional accuracy and surface quality specified in the designQingdao Hanxiang Copper and Aluminum Castings
Precision Copper and Aluminum Sand Casting · Gravity Castings | One-Stop Custom Casting Solutions for Automotive Parts and EquipmentFull-process Production
Sand casting / Gravity casting, integrated service of full-range copper & aluminum blanks plus machining.Independent Mold Development
Custom manufacturing based on drawings or samples; rapid prototyping and mass production of new products.Strict Quality Control
Adopt national standard alloy materials, carry out air tightness inspection and non-destructive testing, suitable for supporting automobile main engine manufacturers.Location Advantages
Local factory in Qingdao, bulk procurement of raw materials, fast delivery and high cost performanceFlexible Order Acceptance
We accept both small trial orders and large bulk orders
